Features

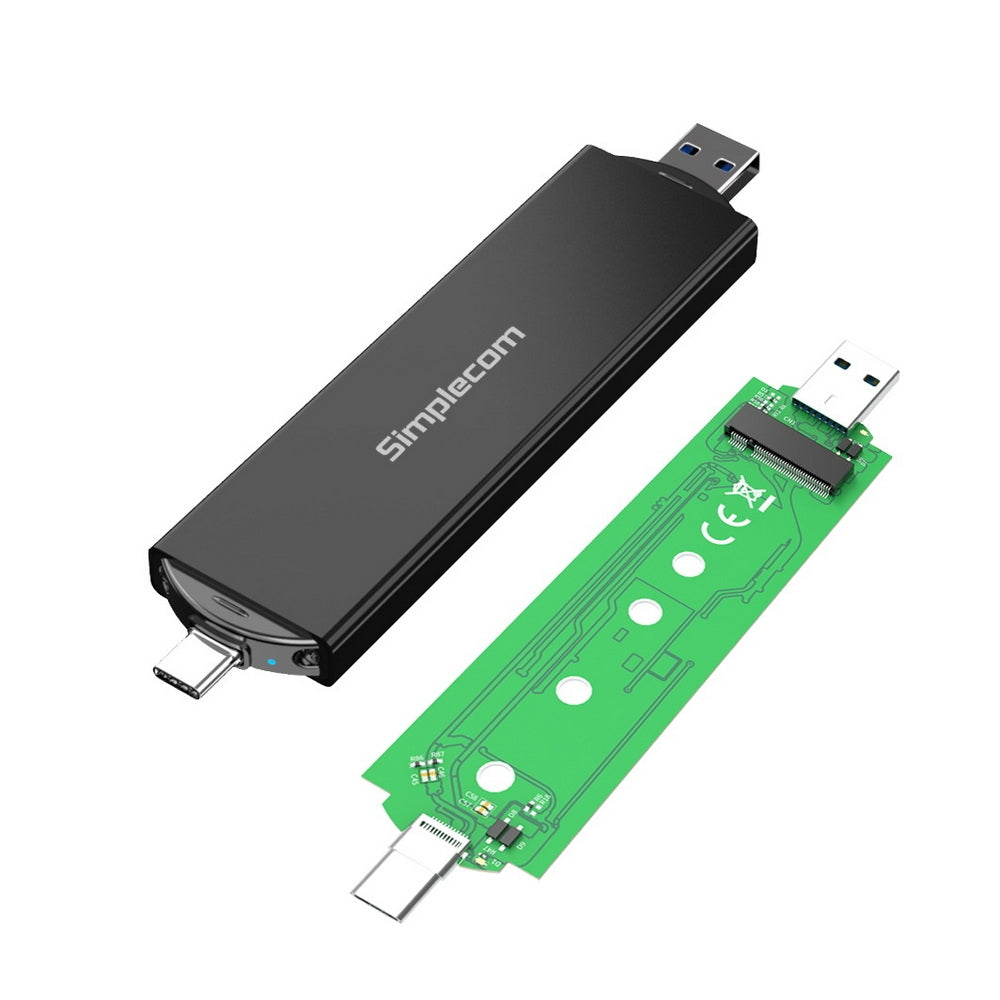

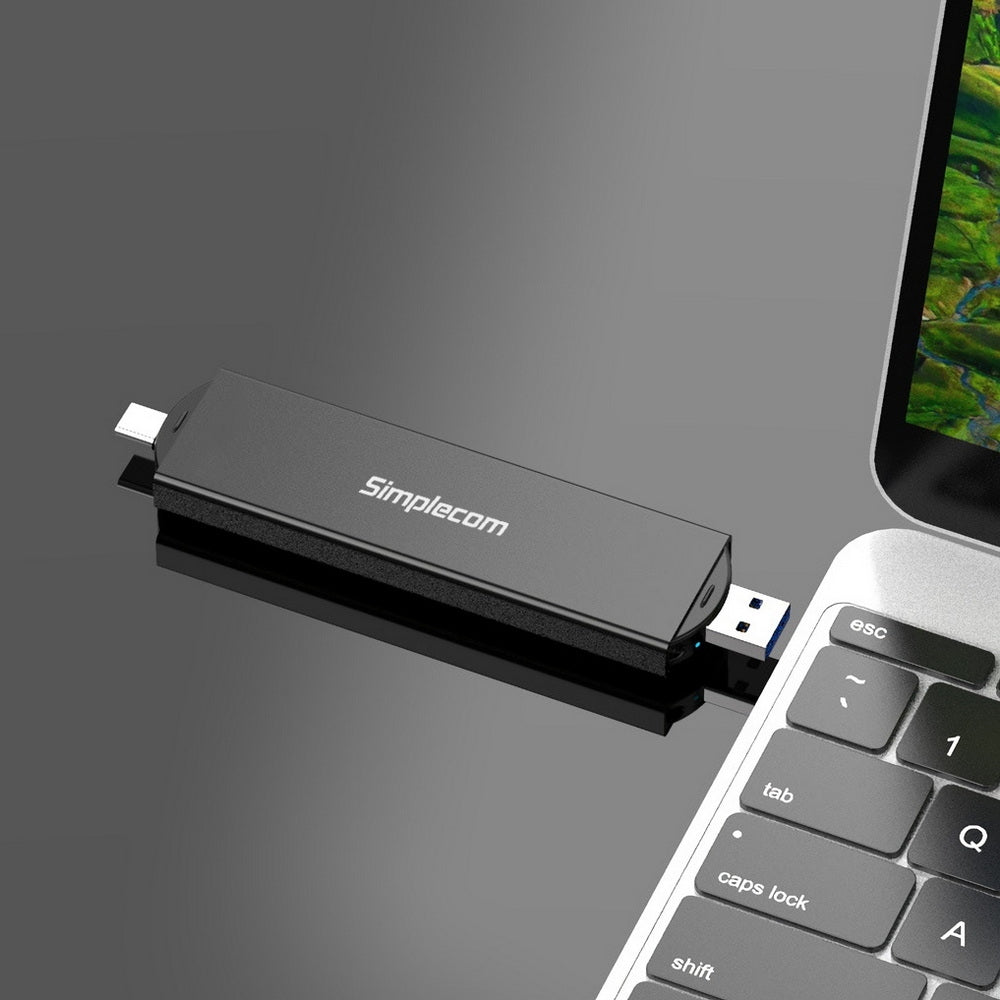

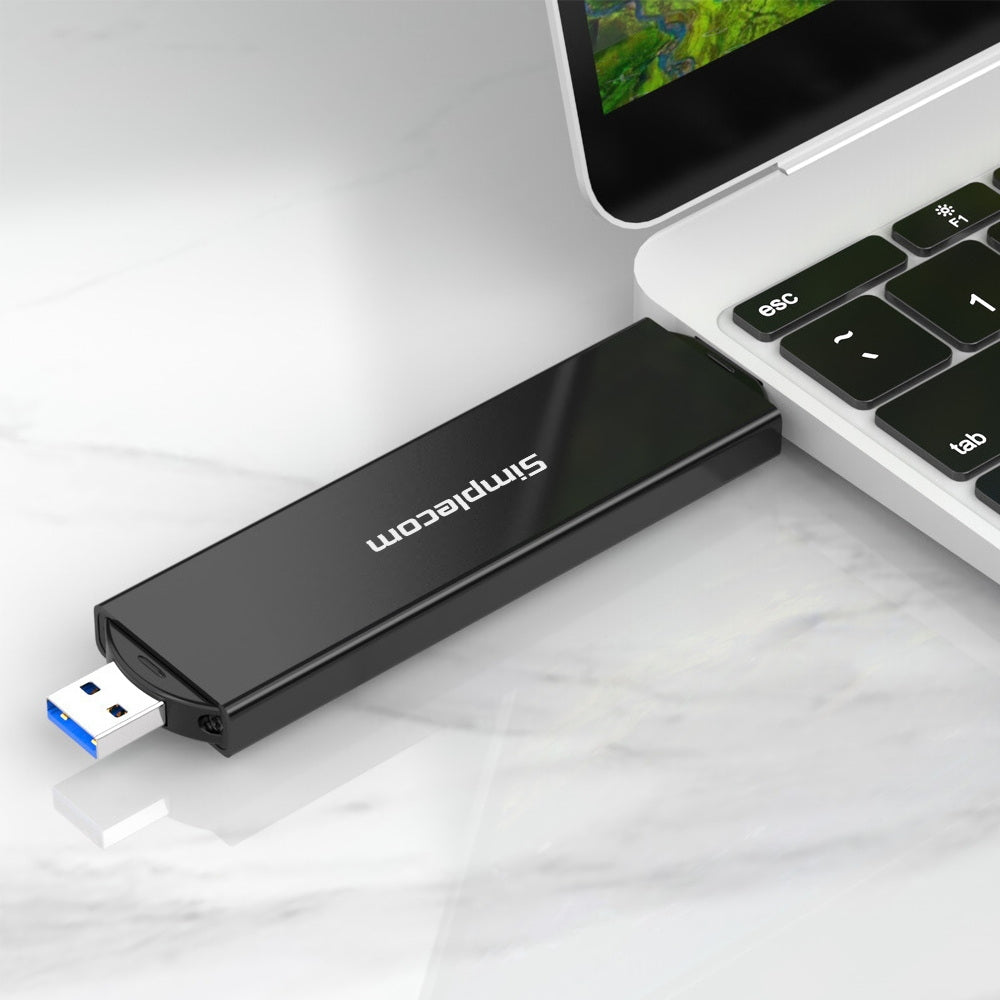

SE522 is a M.2 SSD to dual USB enclosure, with built-in both USB-A and USB-C connectors. Two USB connectors for convenience and ease of use on different computers. It’s also easy to carry in your pocket, and no need to worry about losing USB cables. SE522 supports both NVMe and SATA protocol based M.2 SSD for maximum compatibility, it can easily turns most M.2 SSD into a portable external USB drive.
Featuring a durable lightweight aluminium casing, it looks elegant and professional, USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. A USB-C extension cable is included for ease of use in tight spaces also to protect the USB-C port on your computer.
Built-in USB-A and USB-C dual connector
Convert M.2 SSD (M Key or B+M Key) to a USB portable drive
Dual protocol support for both NVMe and SATA M.2 SSD

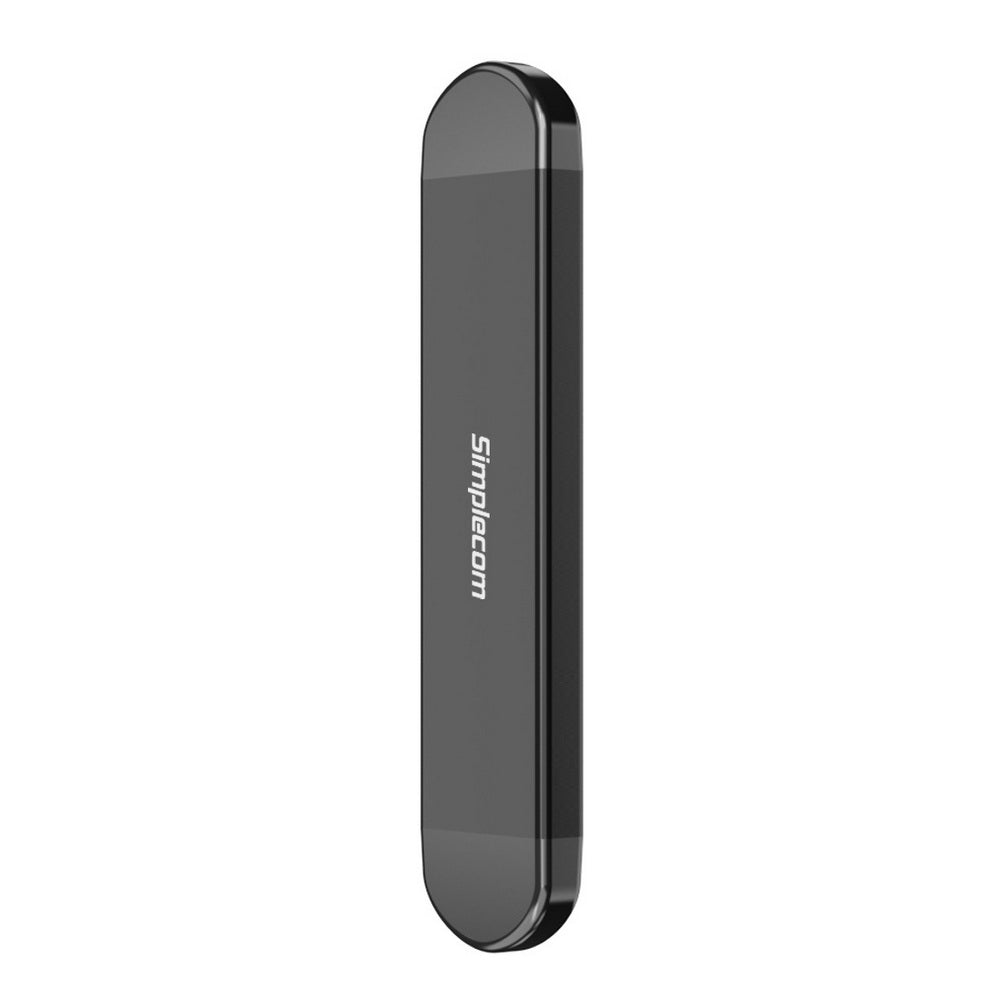

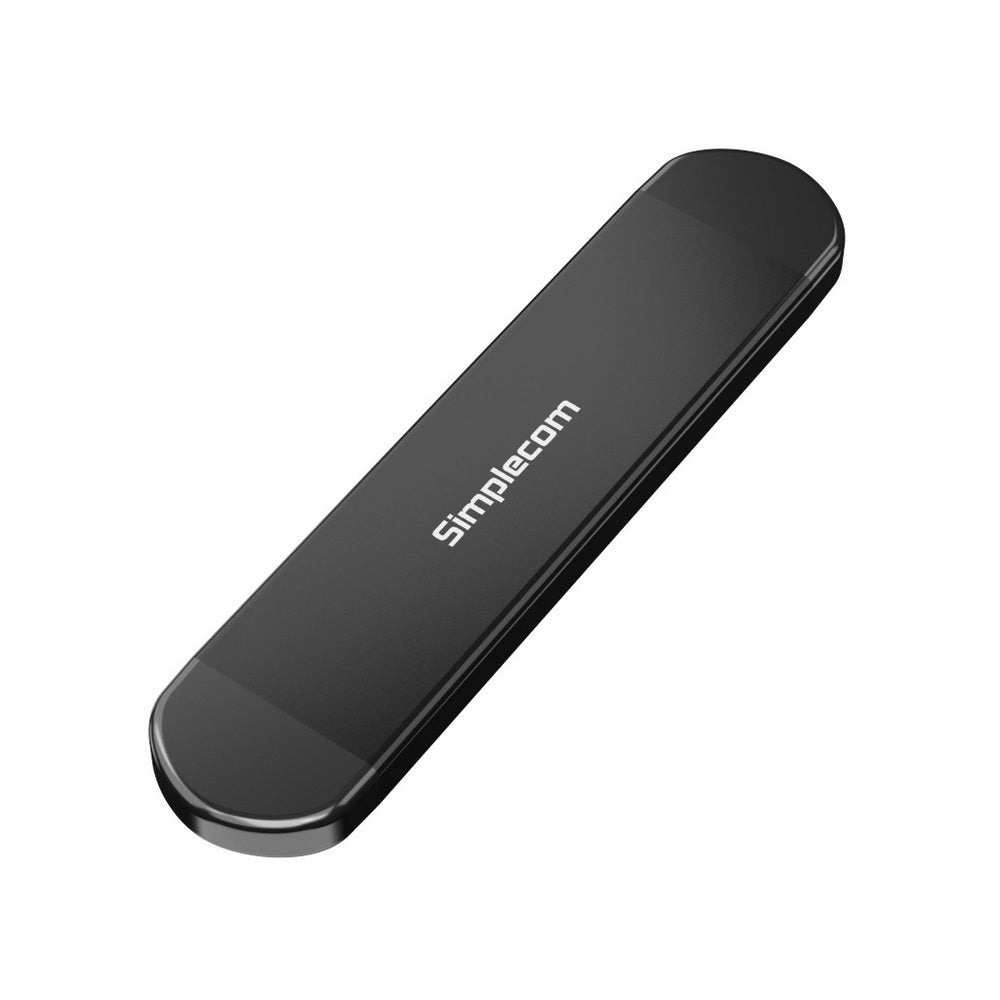

Premium aluminium exterior with small, portable design
USB 3.2 Gen 2 interface up to 10Gbps transfer rate
USB-A port is backward compatible with USB 3.1, 3.0 and 2.0

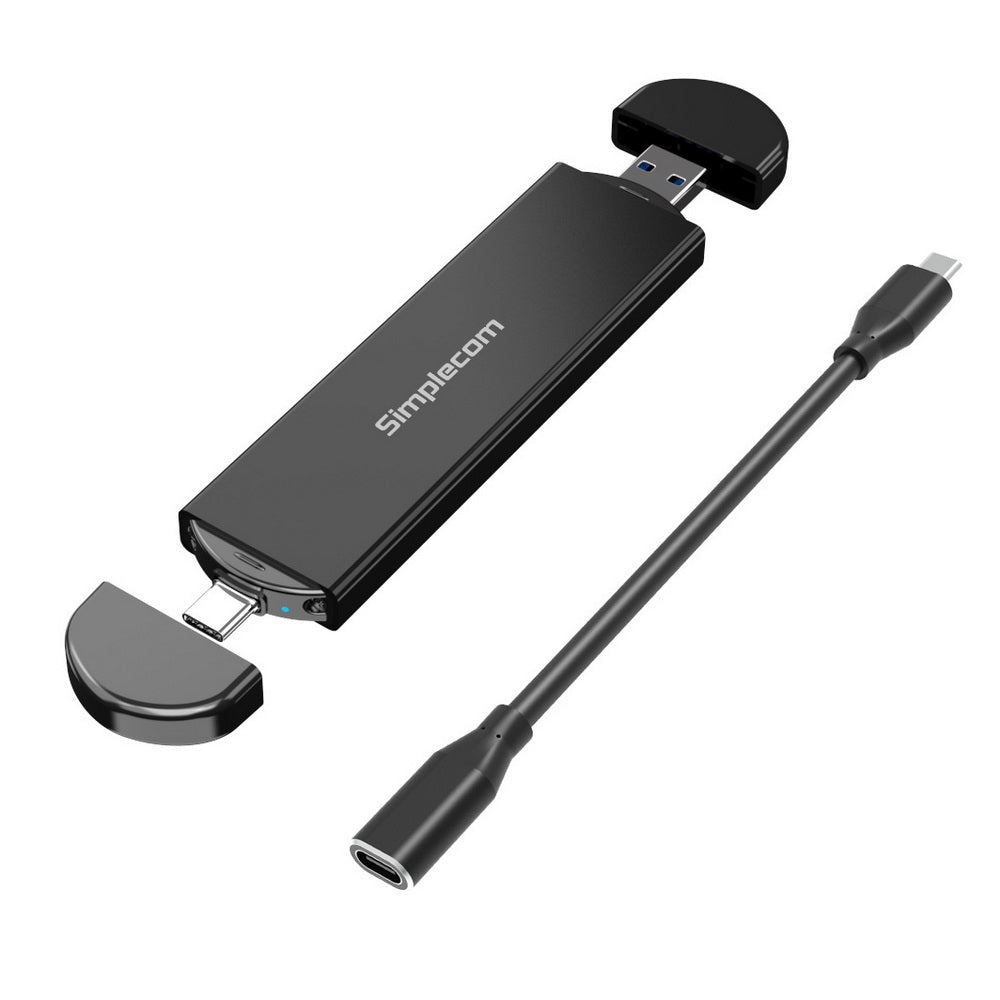

USB-C extension cable is included for ease of use in tight spaces
Plug and play, no drivers required
LED indicator for power and activity status
Specifications
Model: SE522
Connector: USB-C, USB-A
Interface: USB 3.2 Gen 2 10Gbps
Material: Aluminium + ABS
Compatible M.2 Protocol: NVMe M.2, SATA M.2
Compatible M.2 Size: 2230, 2242, 2260, 2280
Weight:43g
Dimension: 140x30x9mm (LxWxH)
Operating System Support: Windows 7 and above, MacOS 10.5 and above
Note
SE522 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
10Gbps data transfer rate is only for USB3.2 Gen2 enabled computer (also known as USB3.1 Gen2)
For new SSD, you need to go into the disk management and initialize the SSD
Due to high speed of NVMe M.2 SSD, the temperature is higher than traditional USB hard drive, NVMe M.2 SSD is designed to work stably at 60-70 degree in heavy workload
Package Content
1x SE522 NVMe / SATA M.2 SSD Enclosure
1x USB-C Male to USB-C Female Extension Cable
1x Screw driver
1X Standoff and Screw Set
