Description
CHT815 is a powerful 15-in-1 USB-C docking station that provides a wide range of useful ports to expand your laptop's capabilities through a single USB-C connection. The docking station comes equipped with 5 USB-A and 2 USB-C data ports, 2 card reader slots, Gigabit Ethernet, a headphone jack, and 3 display output ports (including two HDMI and one DisplayPort).
Those display ports allow you to connect up to three external displays at 4K resolution, allowing you to extend your desktop across multiple screens or use them for separate tasks. Don't be restricted to the small screen on laptop, this docking station can significantly increase productivity by adding multiple screens to your laptop and have different content on each monitor.
Total 7 USB-A and USB-C data ports allow you to connect various USB peripherals. It also supports Power Delivery up to 100W charging via the USB-C PD port, which can come in handy if you need to charge your laptop while using this docking station.
Quick and easy to install, the docking station is plug and play, no need for additional drivers. It's a great solution for work or home office to increase productivity and convenience when using a laptop computer.

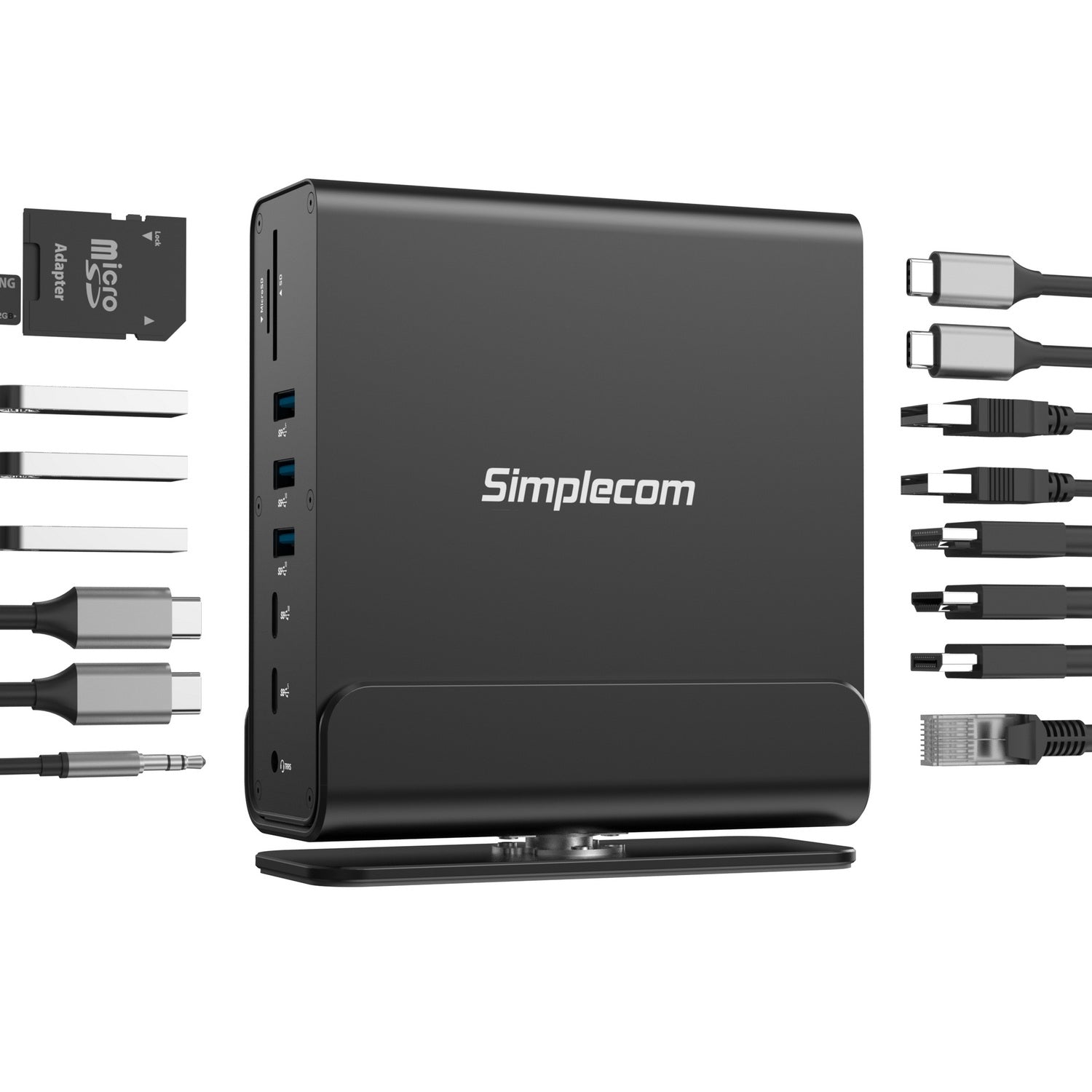

• 15-in-1 Powerful USB-C Docking Station
A powerful all-in-one USB-C docking station comes equipped with 5 USB-A and 2 USB-C data ports, 2 card reader slots, Gigabit Ethernet, a headphone jack, and 3 display output ports (including two HDMI and one DisplayPort).

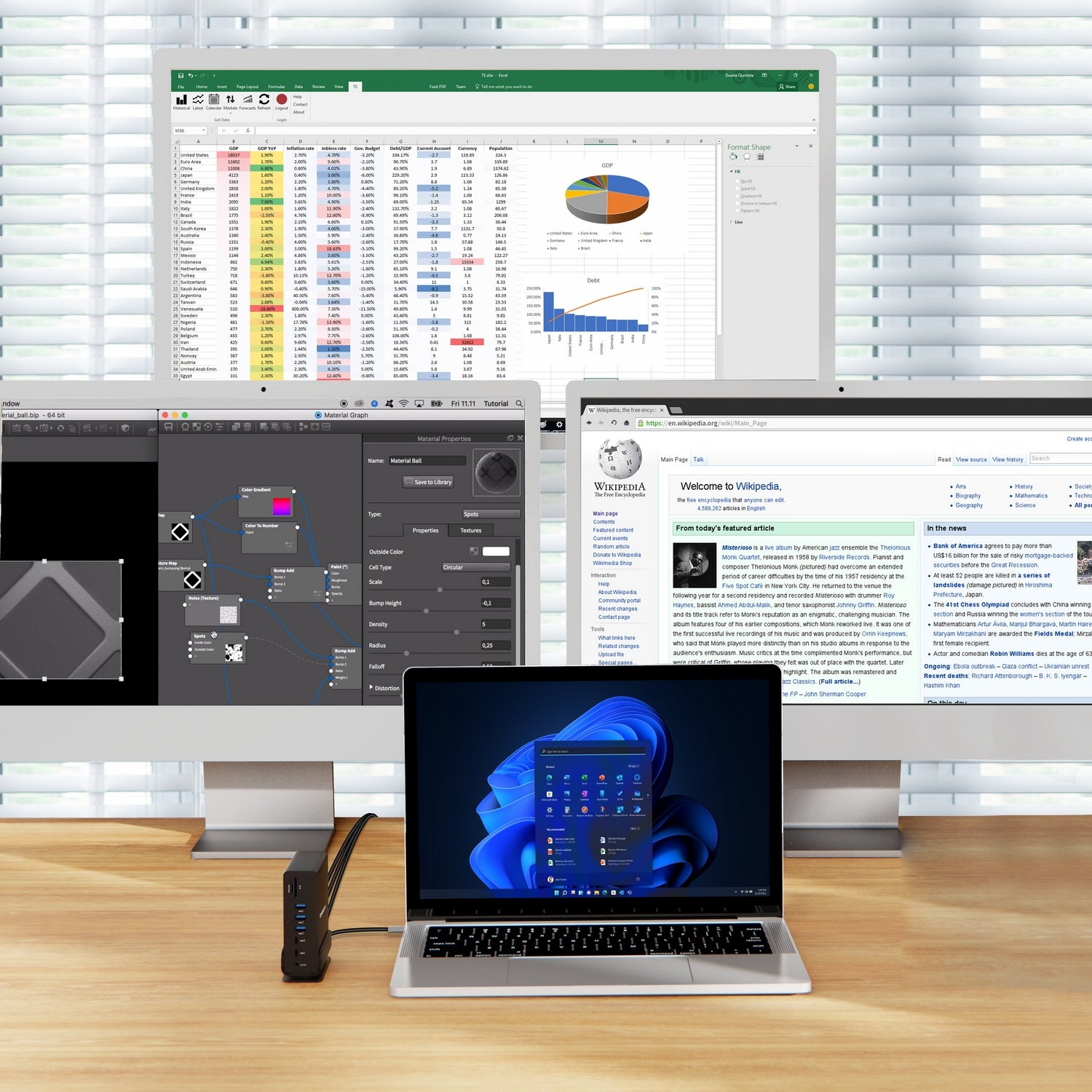

• Support MST and Triple 4K Extended Displays

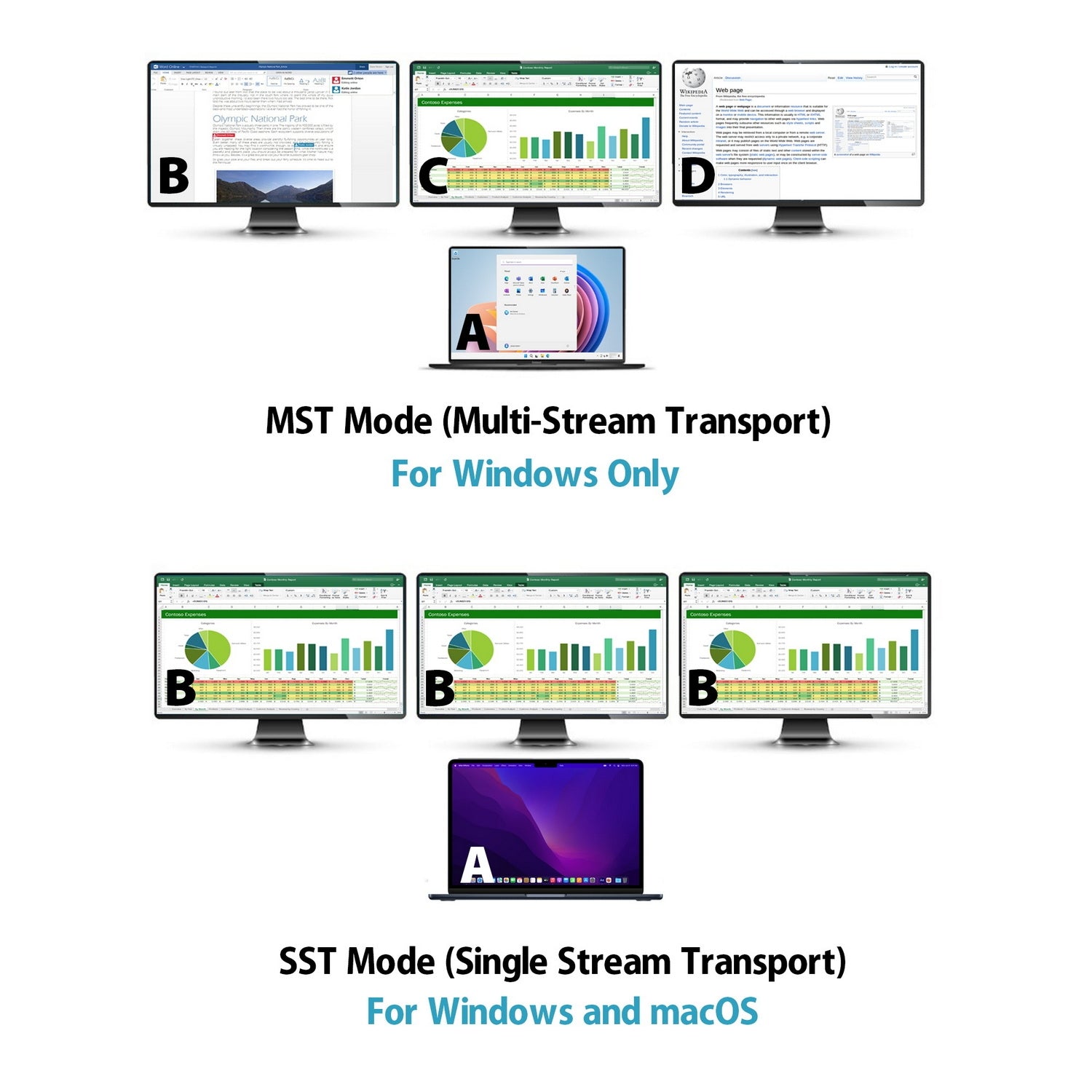

MST (Multi Stream Transport) allows multiple displays to be connected to a single USB-C port with DP Alt Mode. This docking station offers two HDMI outputs and one DisplayPort output. It allows you to connect 3 displays simultaneously, and supports 3 extended screens up to 4K resolution. (Please note MST is for Windows system only, macOS doesn't support MST)
• Expansion of USB-A and USB-C Data Ports with 10Gbps Support
With a total of 7 USB-A and USB-C data ports available, you can easily connect a variety of USB peripherals, such as USB storage drives, mouse, keyboard, printer and more. Three of these ports also support data transfer rate of up to 10Gbps, ideal for portable SSD drive to transfer large size of data.

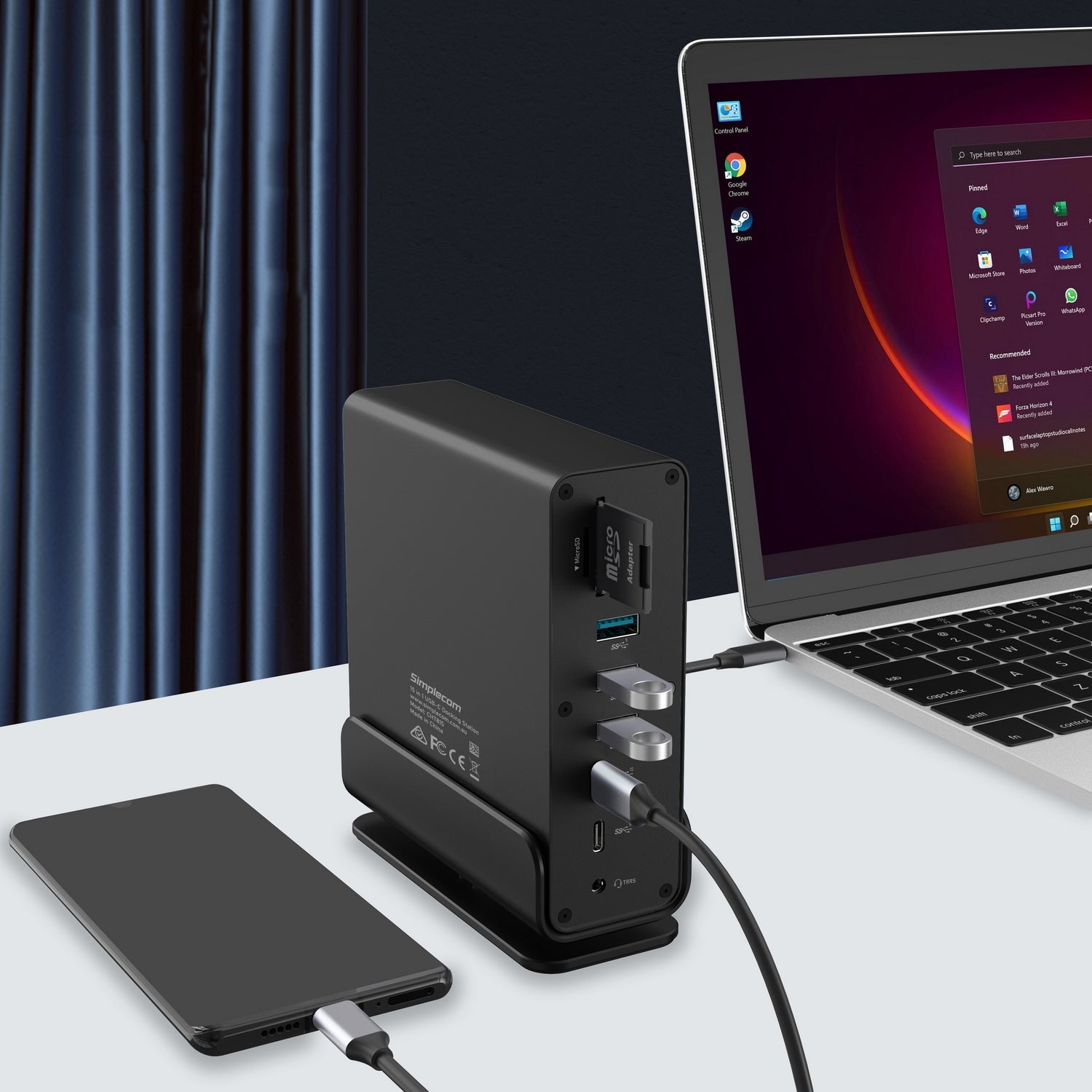

• 100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports PD3.0 and up to 100W Power Delivery charging.
• Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.
• SuperSpeed 2-Slot Card Reader and TRRS Headphone Jack
The SuperSpeed card reader support data transfer rate up to 5Gbps and allows you to quickly and easily transfer files such as photos, videos, and documents from your SD or microSD cards to your computer. The TRRS headphone jack lets you use a headset with a built-in microphone, which is useful for online meetings, voice calls, or recording audio.

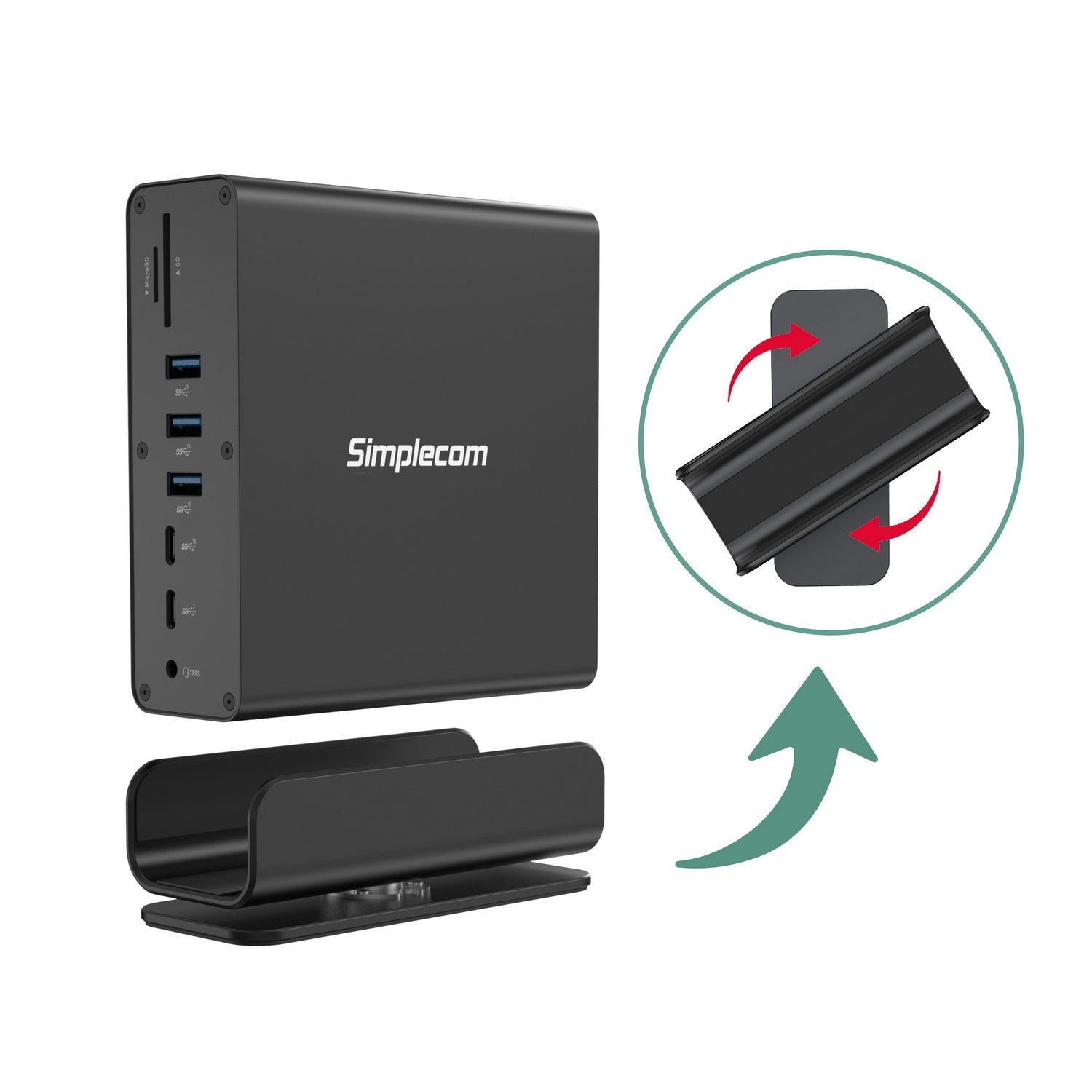

• Durable Aluminium Alloy Casing with Vertical Stand
This docking station has a sturdy and elegant aluminium alloy case that looks great on your desk. The metal shell also helps to dissipate heat and protect the circuit for stable performance. A rotatable vertical stand is provided to enable positioning of the docking station in a vertical orientation, which can be rotated for ease of use.
Features
- Significantly increase productivity by adding this 15-in-1 docking station to your laptop
- Triple display outputs support up to three extended displays in 4K resolution
- Support MST (Multi Stream Transport) for mirror or extended screens
- HDMI and DP ports support UHD resolutions up to 4K@60Hz
- Supports Power Delivery up to 100W charging via the USB-C port
- Multiple USB-A and USB-C data ports support transfer rate up to 10Gbps
- Gigabit Ethernet support connection speeds of up to 1000Mbps
- 2 Slot Card reader for SD and microSD with SuperSpeed data transfer rate
- Plug and play, no Driver or software required
- Aluminum casing, durable and better heat dissipation
- Rotatable vertical stand can save desk space
- MST is supported by Windows only, macOS only can support one extended screen

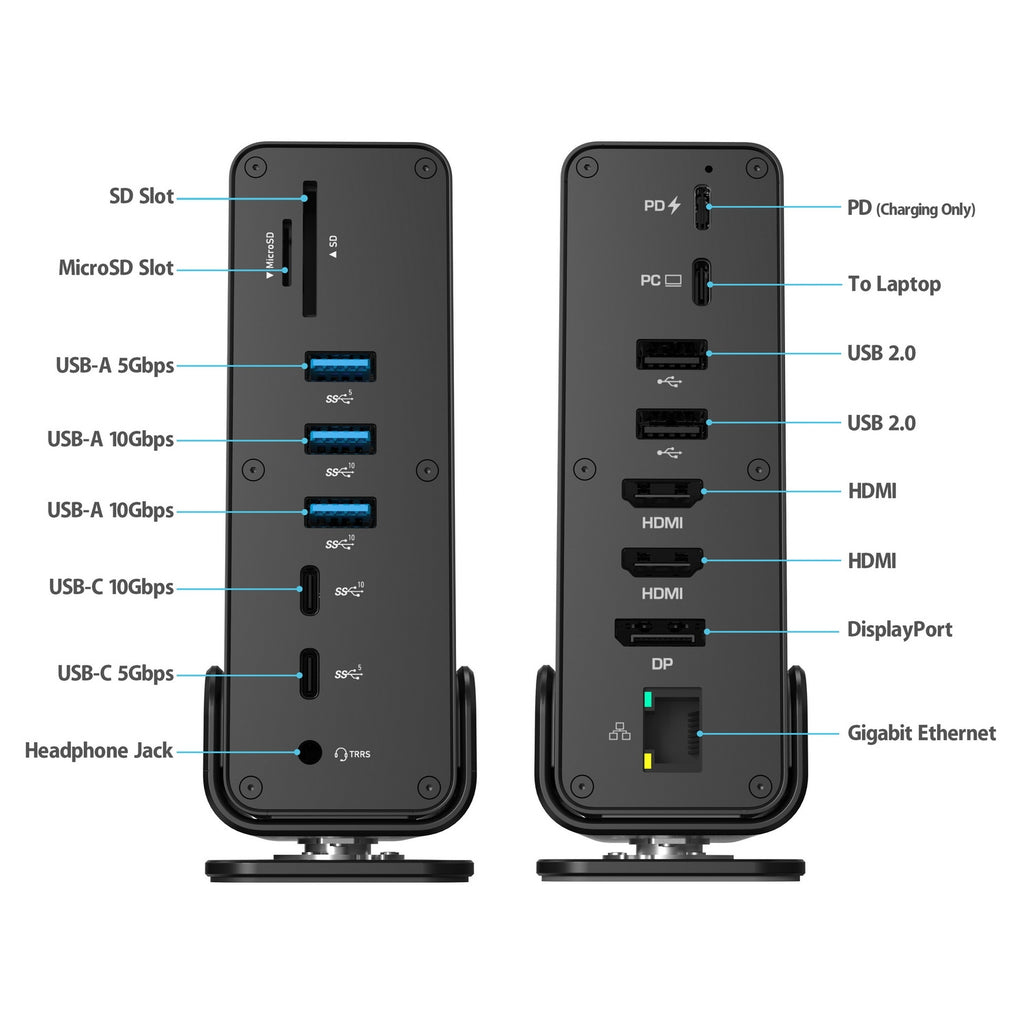

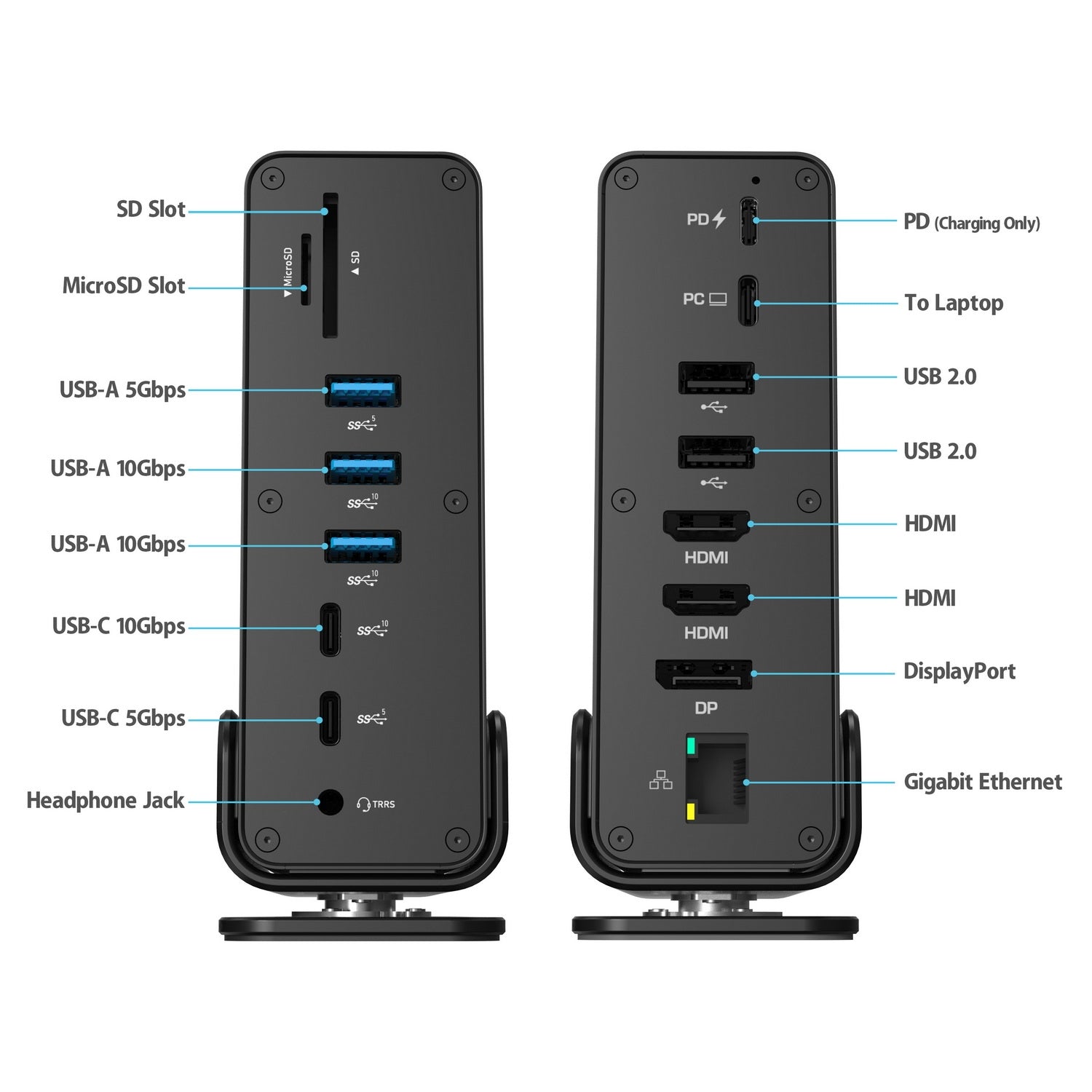

Specifications
- Material: Aluminum
- Host Interface: USB-C Female
- USB-A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
- USB-C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps
- Display Ports: 2x HDMI 2.0, 1x DP 1.4
- HDMI Resolution: up to 4K@60Hz (3840x2160)
- DP Resolution: up to 4K@60Hz (3840x2160)
- HDCP Support: HDCP 2.3 compliant, backwards compatible
- Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
- Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo&Mic Combo)
- Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
- PD Charging: 1x USB-C Female (for charging only), up to 100W
- Operation Temperature: 0 - 50°C
- Weight: 350g
- Dimension: 12.6cm(13.8cm*) x 12.1cm x 4.2cm (*with vertical stand)
System Requirements
- Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
- Thunderbolt USB-C port and USB4 port are recommended
- Windows 10 or above for MST and extended screens support
- macOS does not support MST technology and will only support one extended mode output
- Laptop GPU with DP1.4 supports up to 3x extended screens
- Laptop GPU with DP1.2 supports up to 2x extended screens
- For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU
Important Note
- Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function.
- Laptop GPU with DP1.2 supports 2x extended screens only, laptop GPU with DP1.4 supports 3x extended screens.
- For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power.
Package Contents
- 1x 15-in-1 Docking Station
- 1x USB4 Cable
- 1x Vertical Stand
- 1x User Manual
