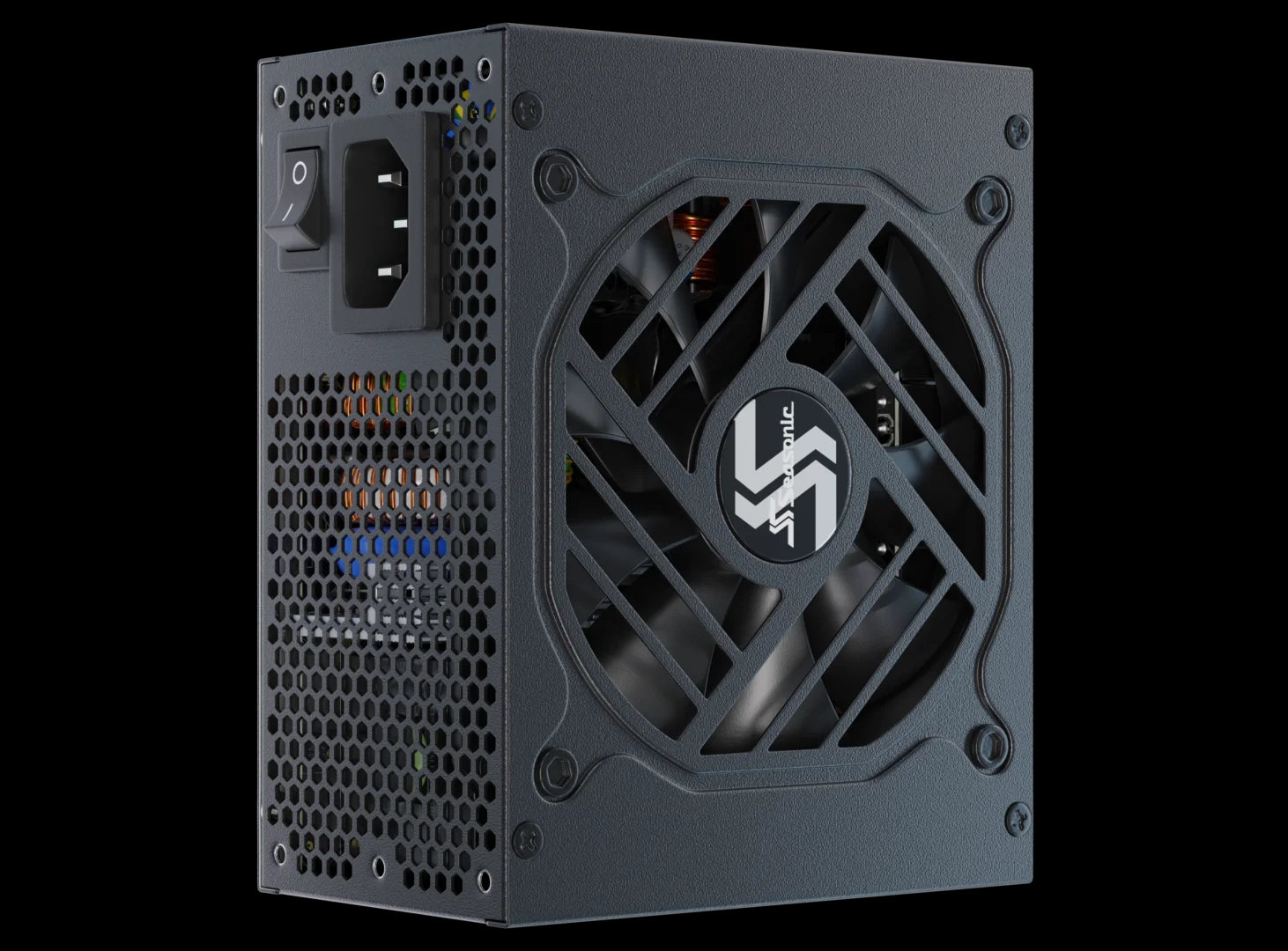

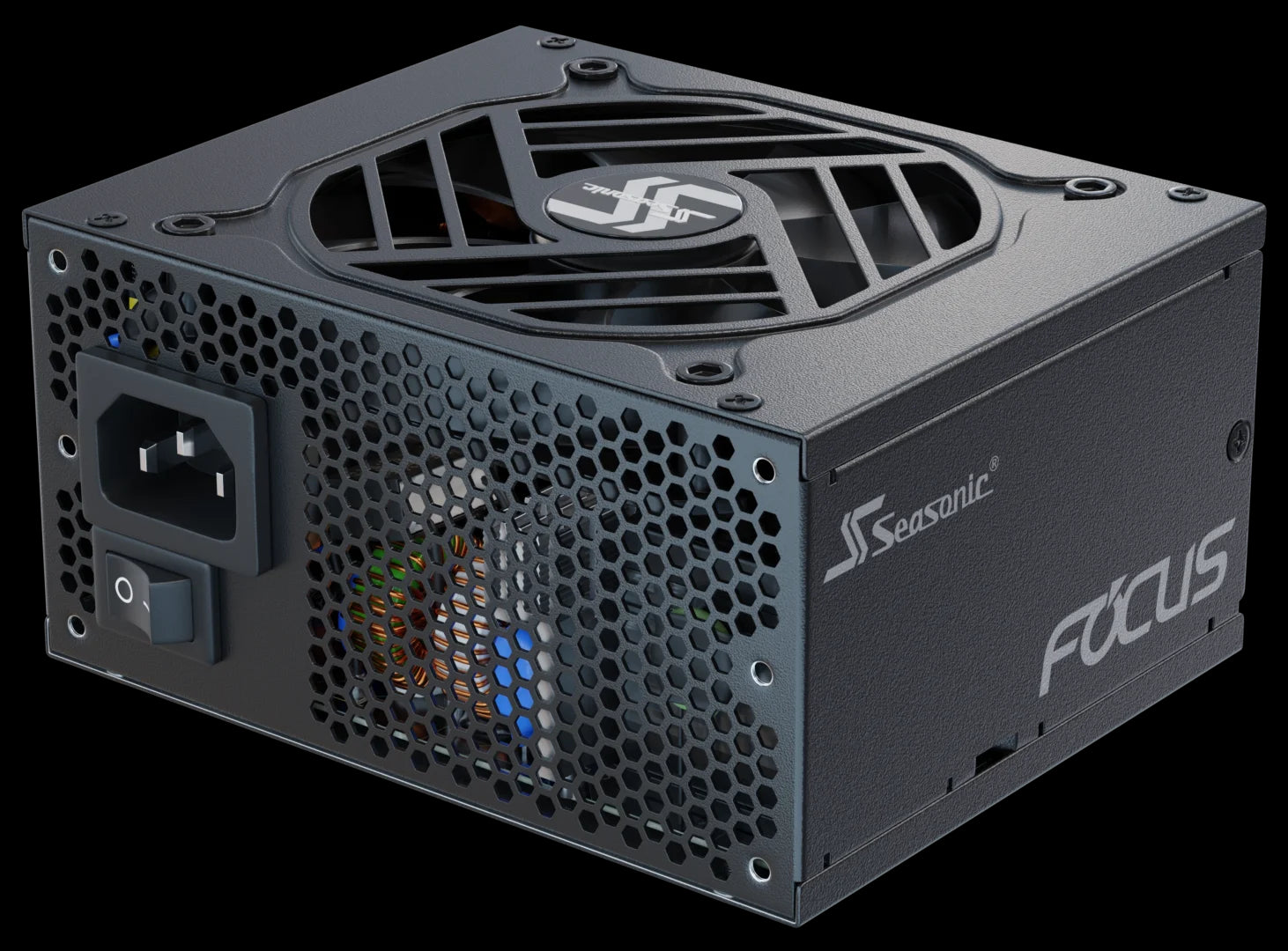

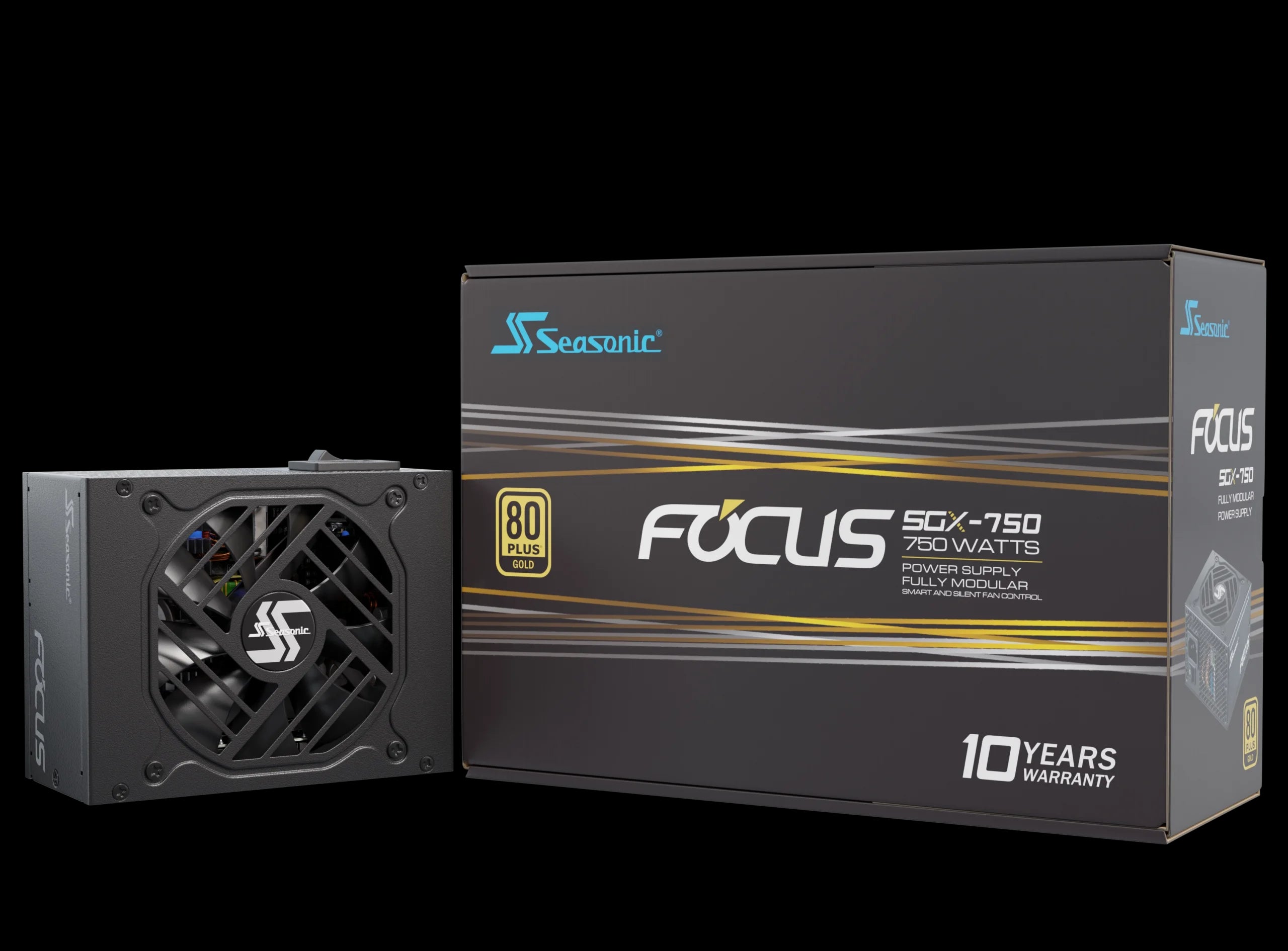

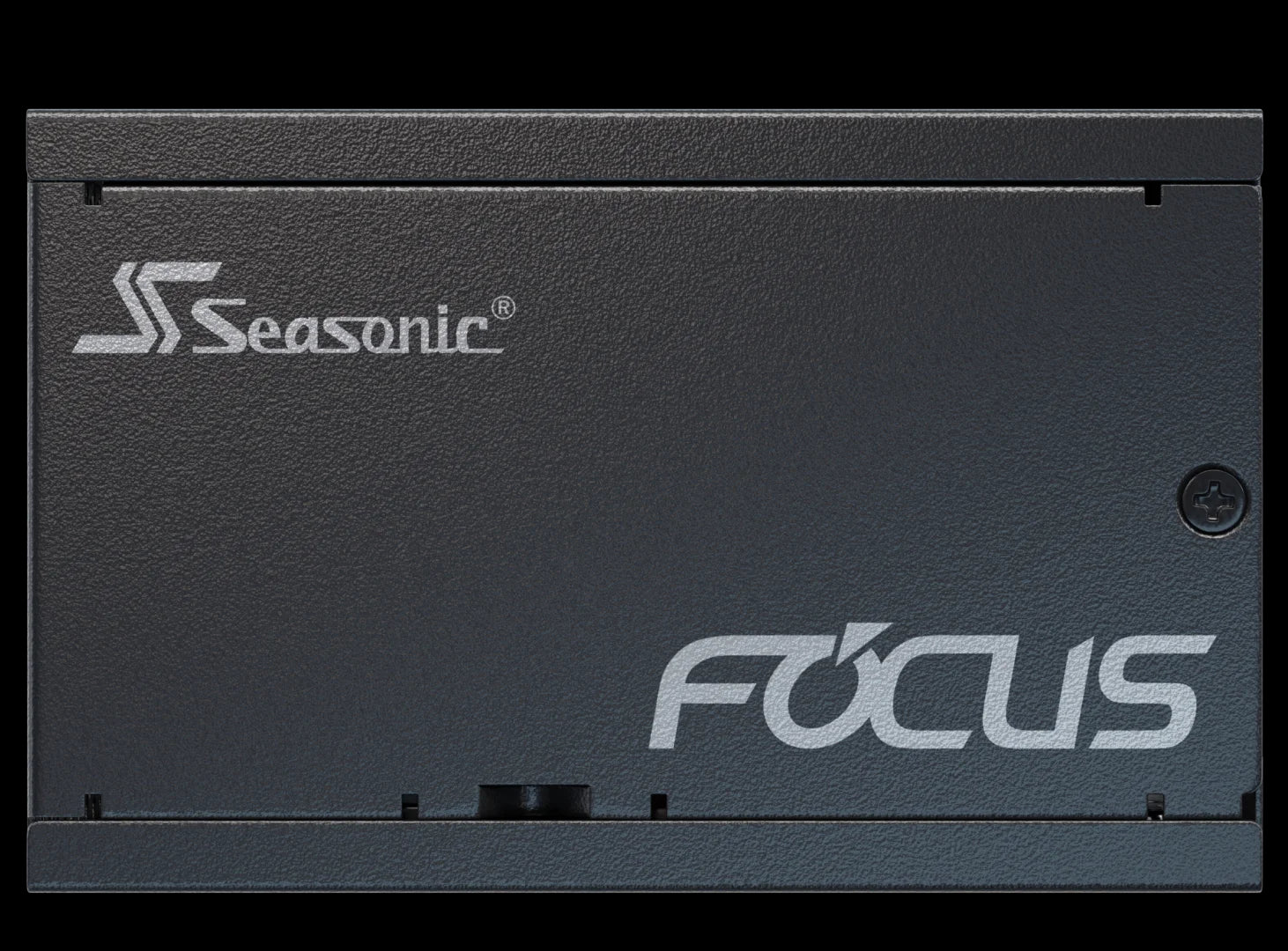

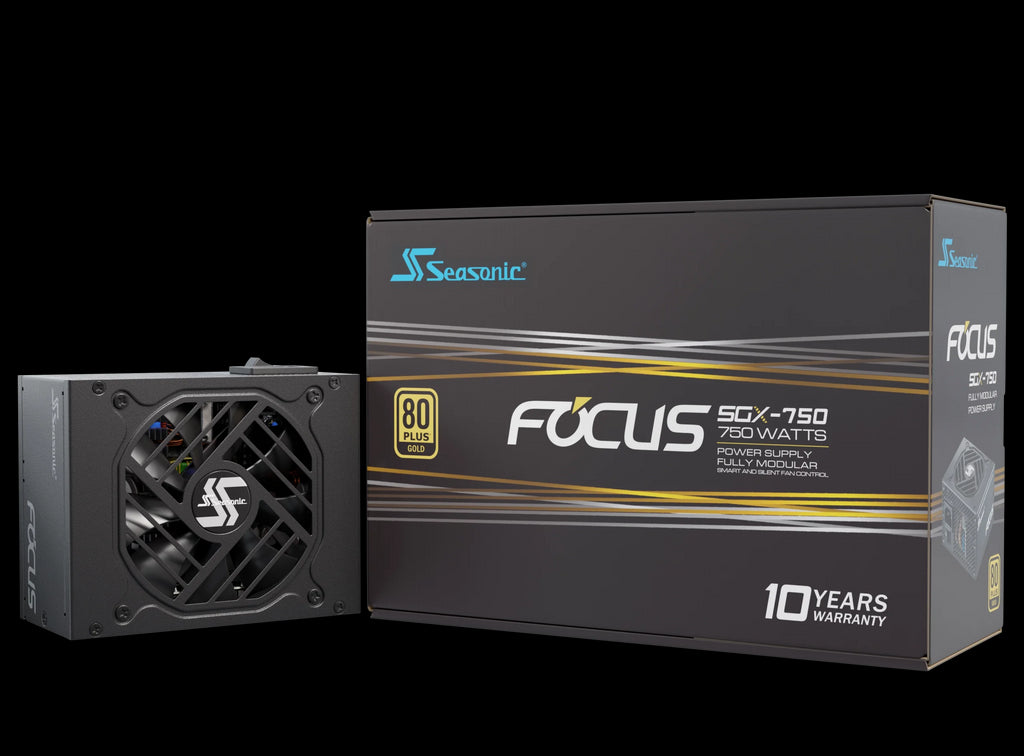

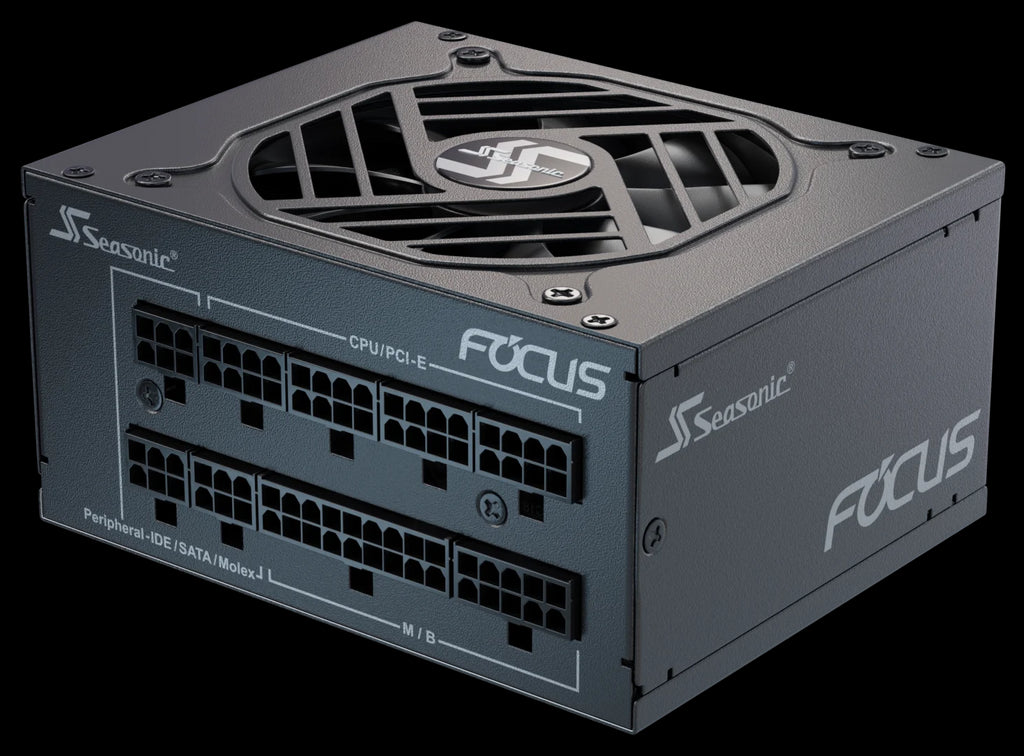

Seasonic FOCUS SGX-750 (2021) 750W Modular 80 Plus Gold PSU

FOCUS SGX (2021)

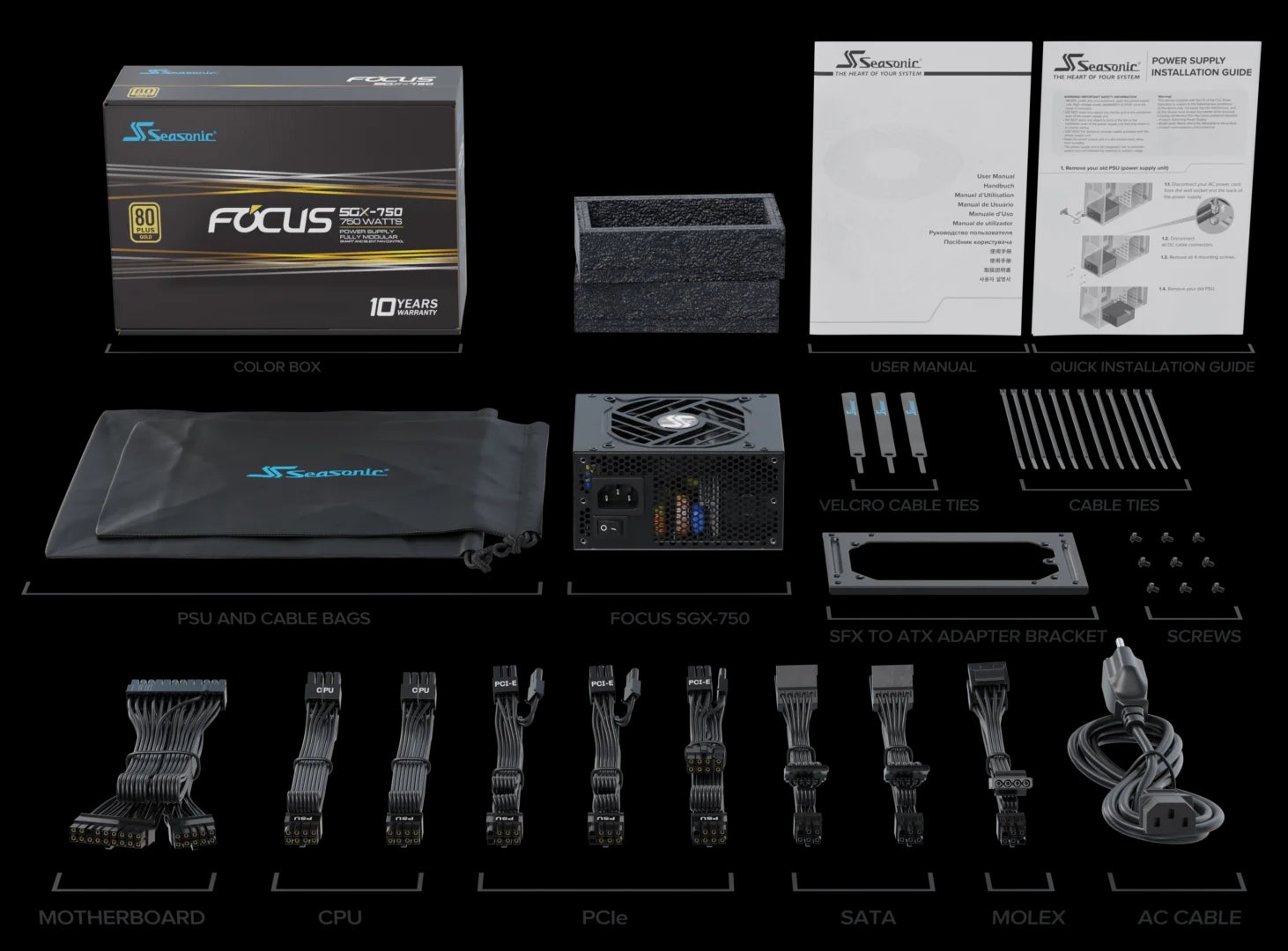

The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

SPECIFICATIONS Technical Specifications

80PLUS ®: Gold

Cybenetics Efficiency Level: TBA

Cybenetics Noise Level: TBA

Form Factor: SFX

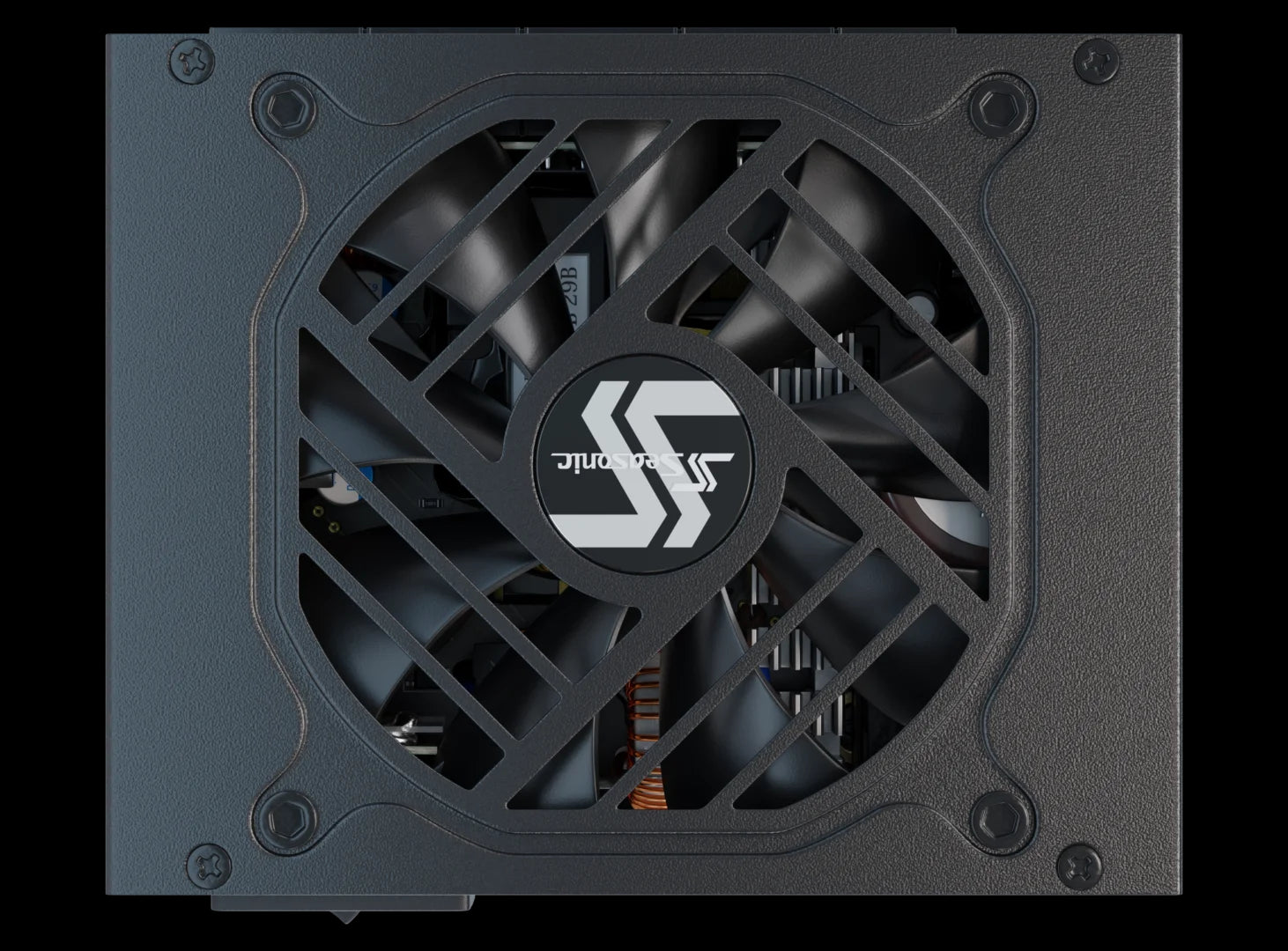

Fan Size: 92 mm

Fan Control: Premium Hybrid Fan Control

Fan Bearing: Fluid Dynamic Bearing

Life Expectancy: 50,000 hours at 40 °C, 15% - 65% RH

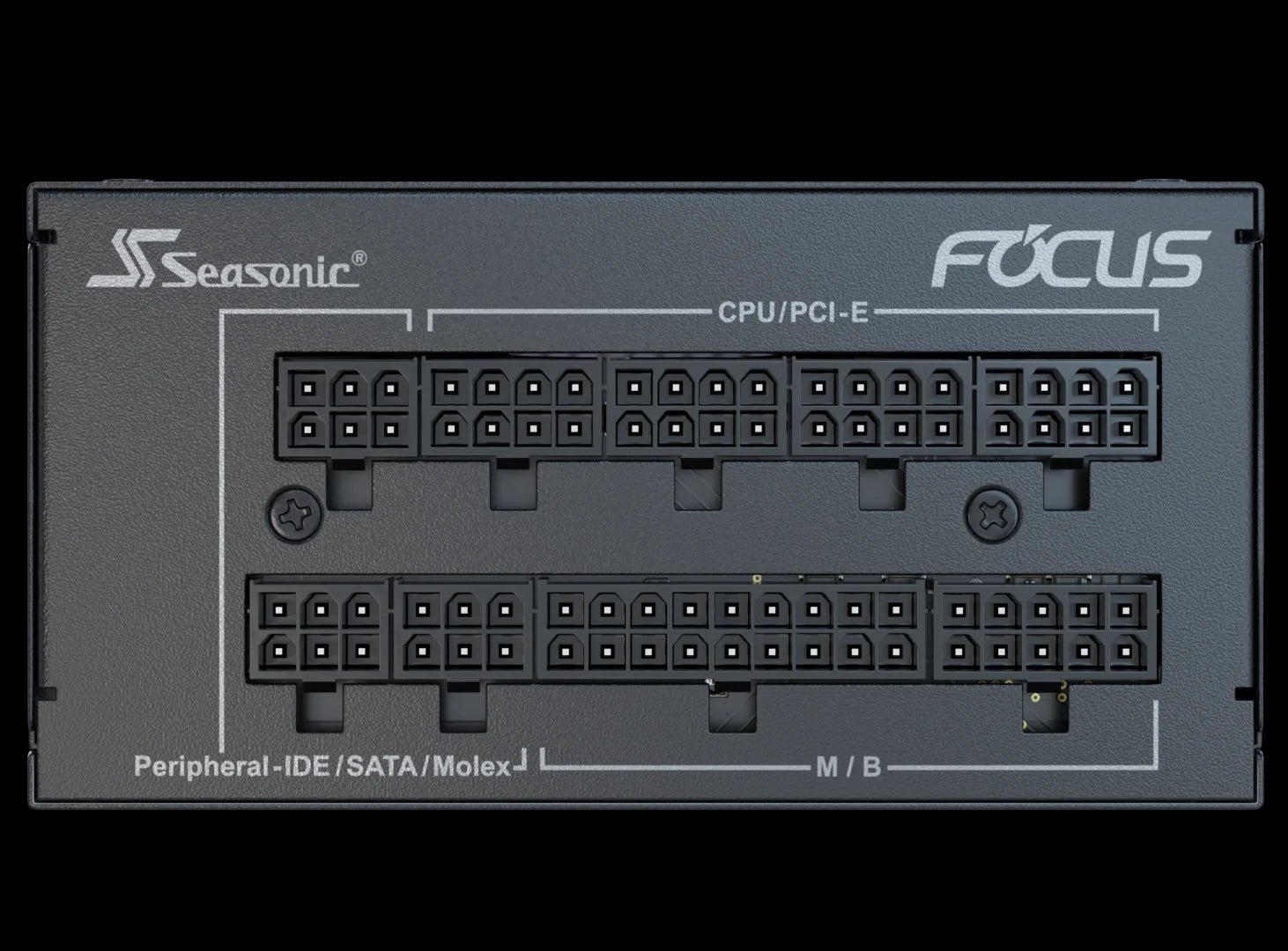

Modularity: Fully Modular

Cable type: Flat black cables

Operating Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)

MTBF @ 25 °C, excl. fan: 100,000 hours

AC Input: Full Range

Protection: OPP, OVP, UVP, OCP, OTP, SCP

Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty: 10 Years
