Description

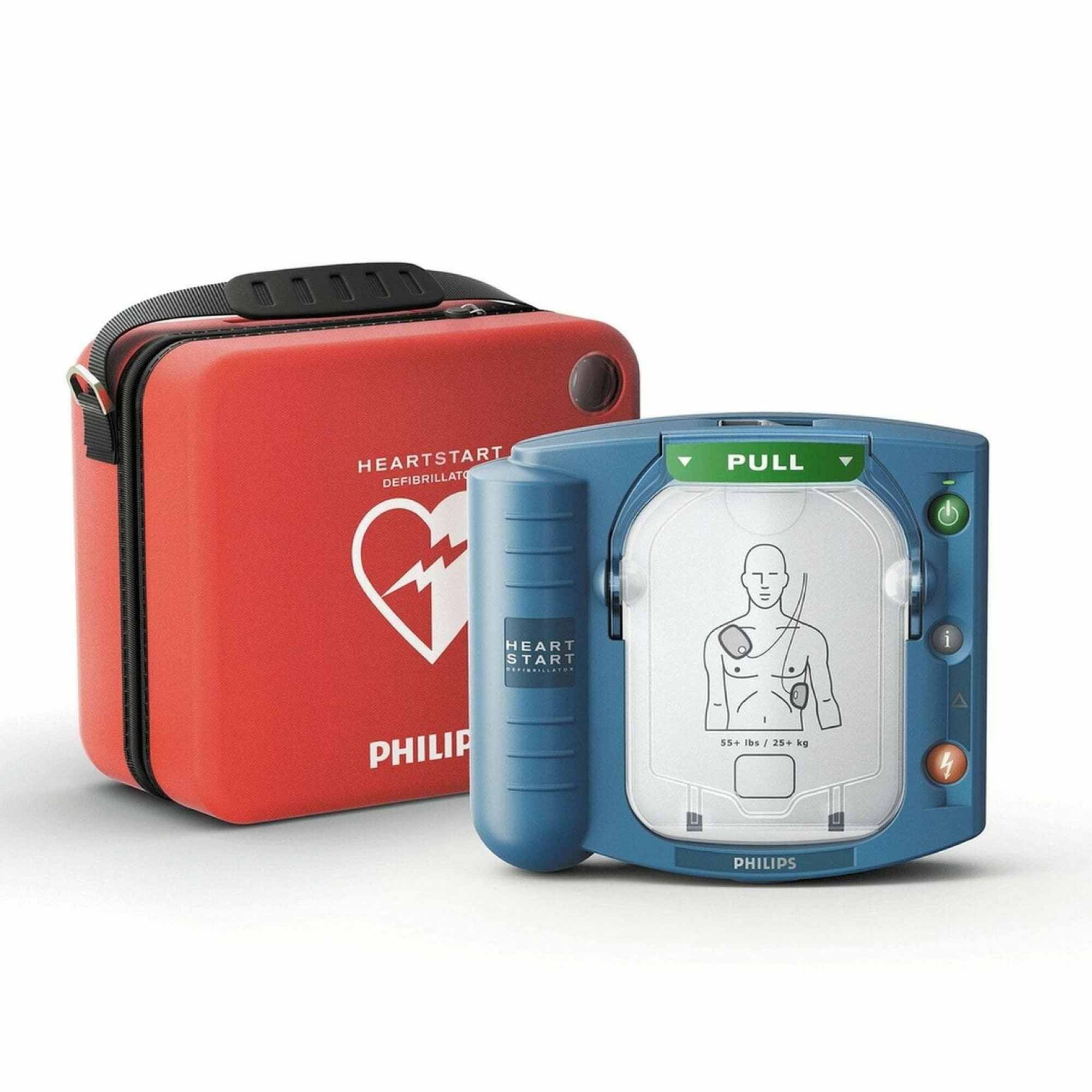

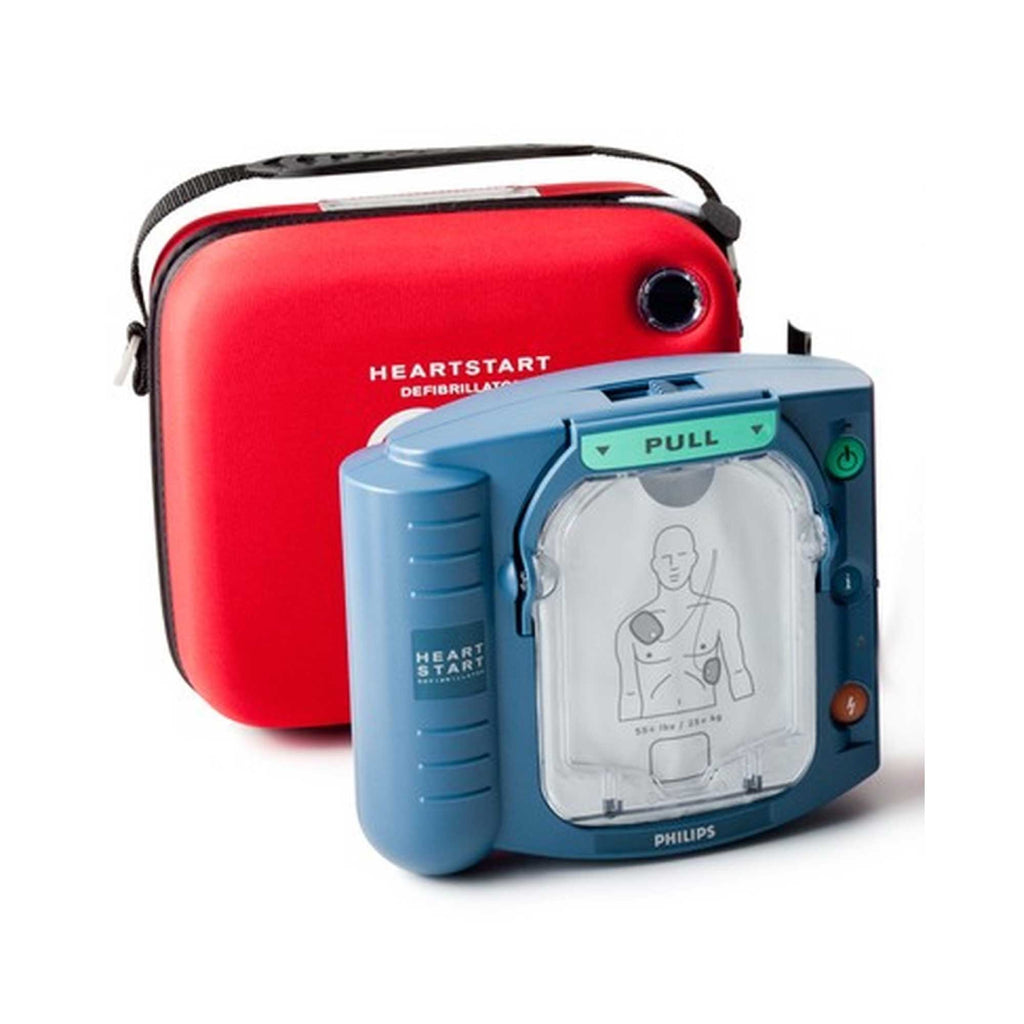

Designed for the ordinary person in the extraordinary moment, Philips HeartStart HS1 is ready to act and virtually ready to go. It allows anyone with little or no training to treat the most common cause of suspected sudden cardiac arrest (SCA) by delivering a shock quickly and effectively, wherever SCA happens. The HS1 provides practically real-time guidance through step-by-step voice commands from pad placement to performing CPR.
Features:
- Philips Heart Start Defibrillator M5066AABU is ready for use
- Fast to learn: So simple to operate that a first aider with minimal training can potentially save the life of a co-worker, friend or member of the family or public.
- Easy to use: Calming natural voice instructions coach the first aider through the steps of first aid CPR and defibrillation if required.
- Always ready: Comprehensive automatic self-tests check all the HeartStarts vital functions on a daily, weekly and monthly schedule, so as to ensure that HeartStart is always ready for emergency life saving.
- Voice coaching: Helps the user take control with easy-to-follow instructions
Specifications:
Battery

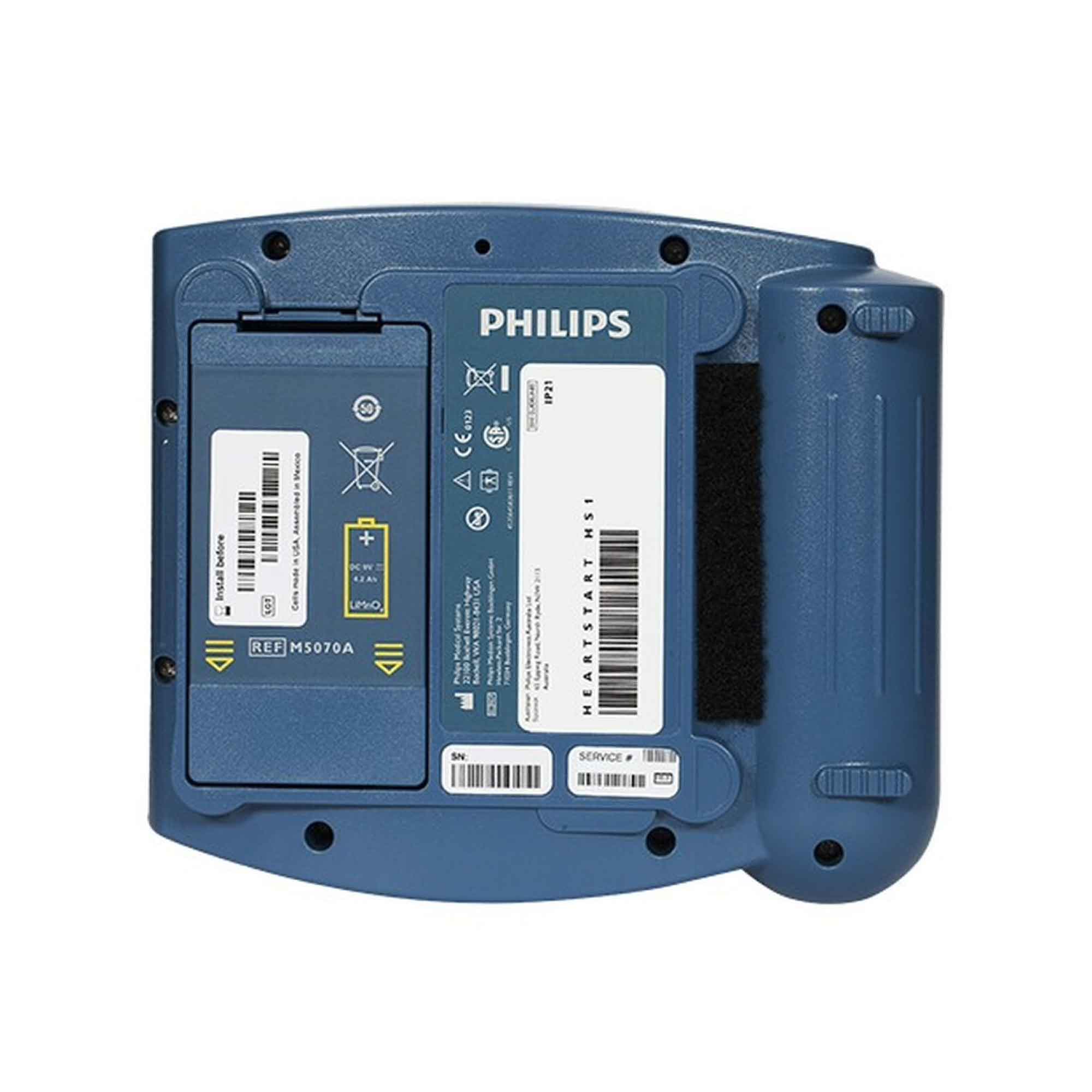

- Type: 9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
- Capacity: Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003)
- Install-by Date: Battery is labeled with an install-by date of at least five years from date of manufacture
- Standby Life: Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified Standby Temperature range, assuming one battery insertion test and no defibrillation uses)
Product
- Kit Contents: Defibrillator, battery (one, pre-installed), SMART Pads (one set, pre-installed), set-up/maintenance guide with expiration date tags, owner's manual, quick reference guide
- Waveform: SMART Truncated exponential biphasic. Waveform parameters adjusted as a function of patient impedance
- Defibrillation peak current - Adult: 32 A (150 J nominal) into a 50 ohm load
- Defibrillation peak current - Paediatric: 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge)
- Shock-to-Shock Cycle Time: Typically less than 20 seconds between shocks in a series
- Quick Shock: Able to deliver a shock after the end of a CPR interval, typically in eight seconds
- Voice Instructions: Detailed voice messages guide responder through use of the defibrillator: CPR Guidance: Instructions for adult and infant/child CPR available at user selection
- Shock Delivery: Via adhesive pads placed on patient's bare skin as illustrated on pads

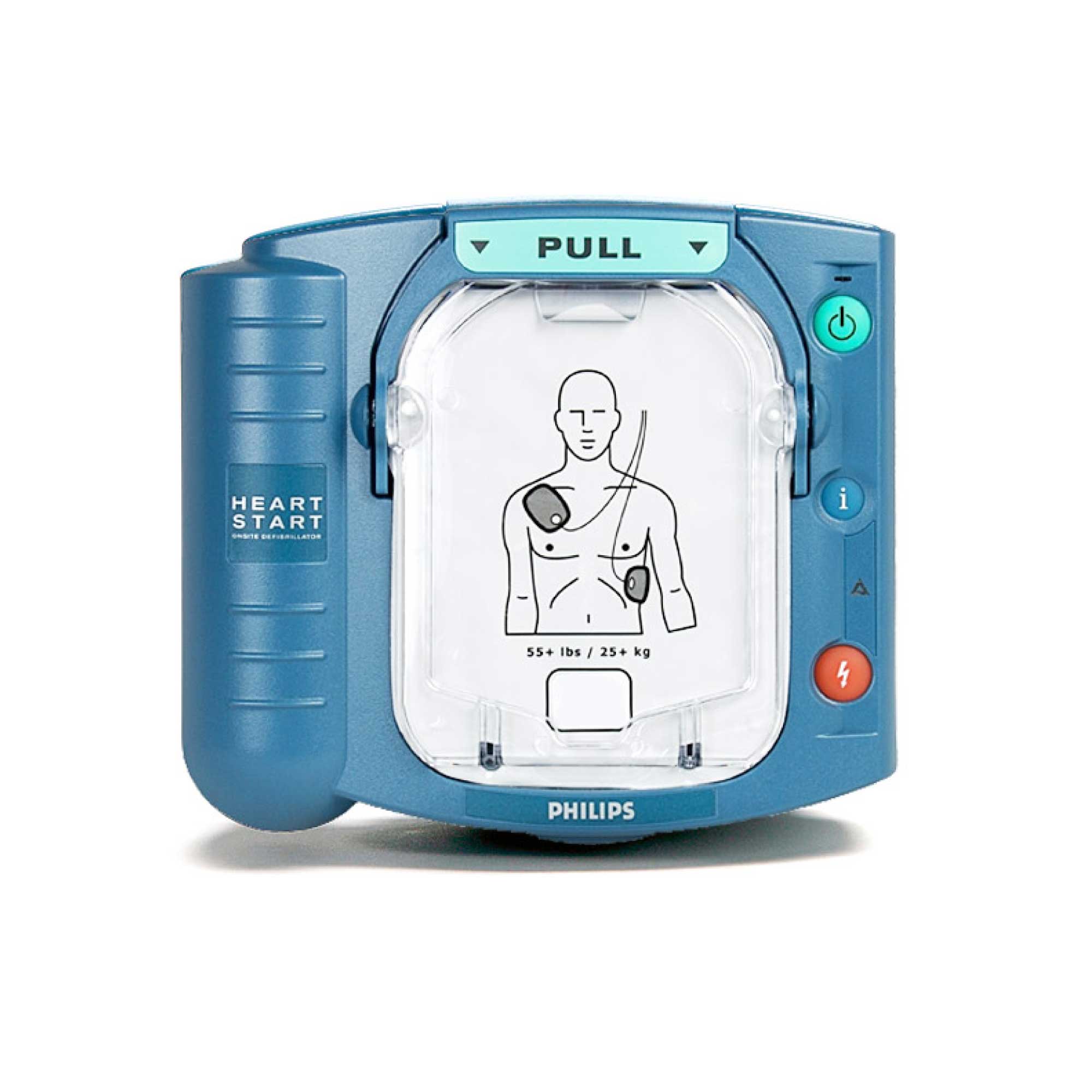

- Controls: Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button
- Indicators: Ready light, blue i-button, caution light
Package Includes:
- Defibrillator
- Adult Pads
- Battery
- Quick Reference Guide
- User Manual

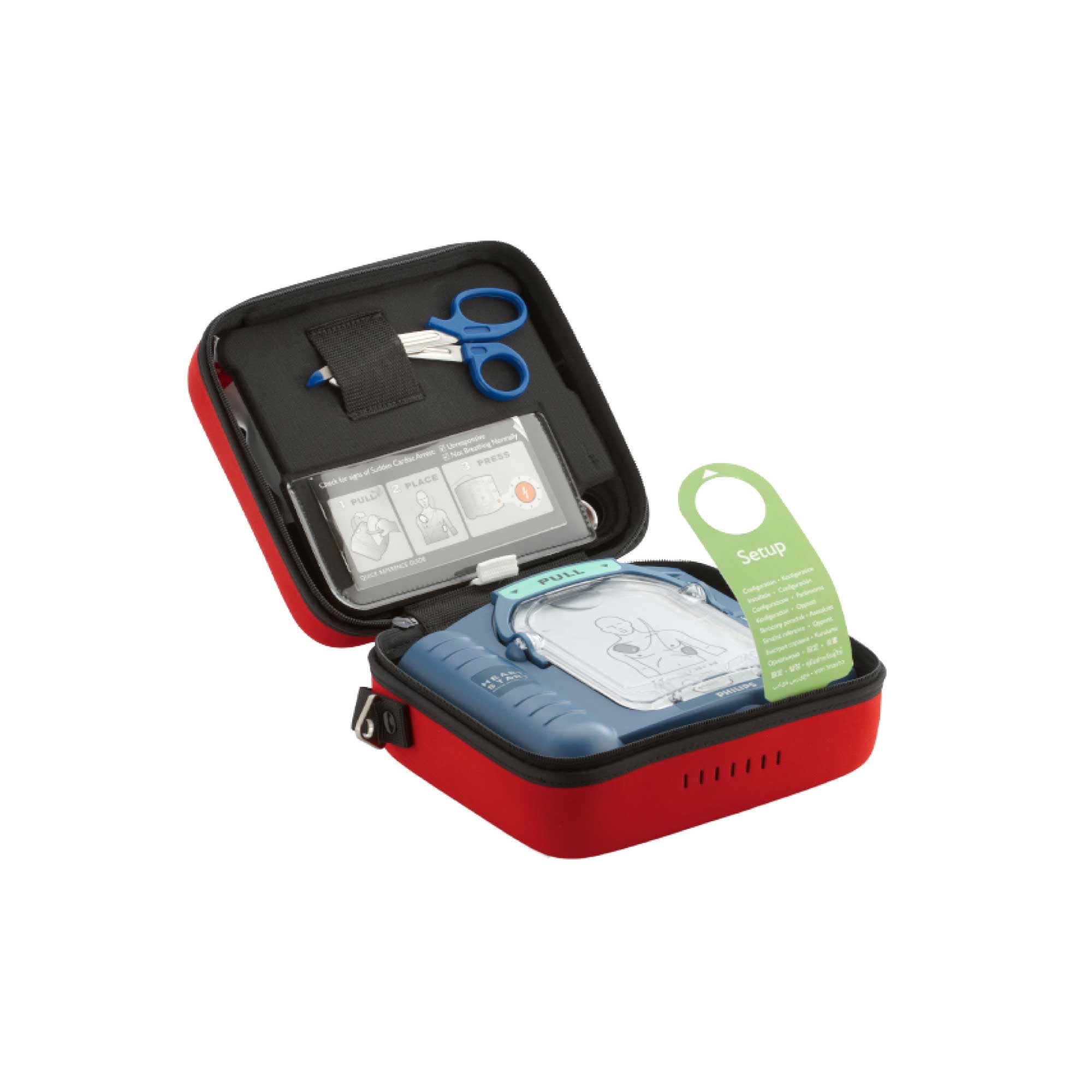

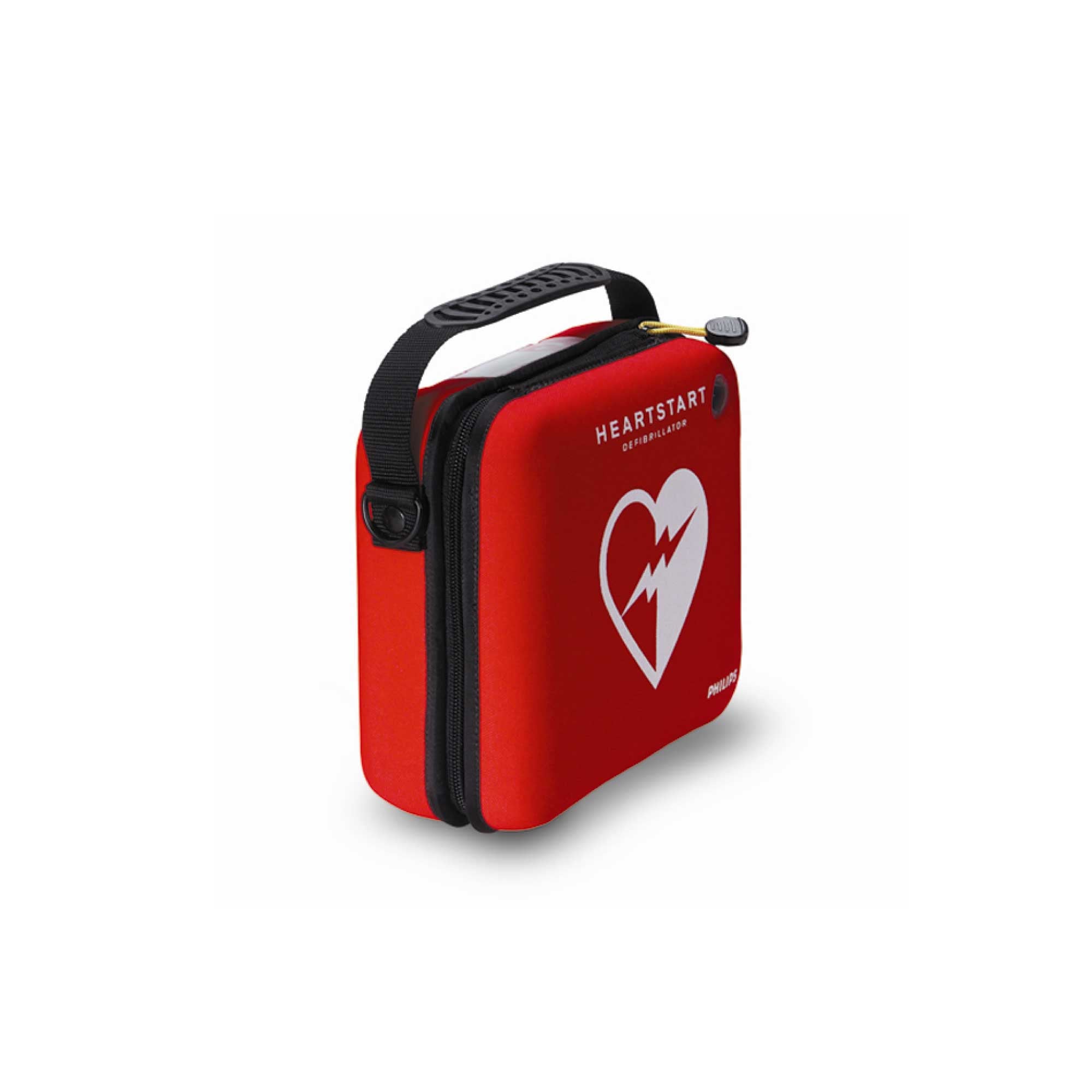

- Standard Carry Case
